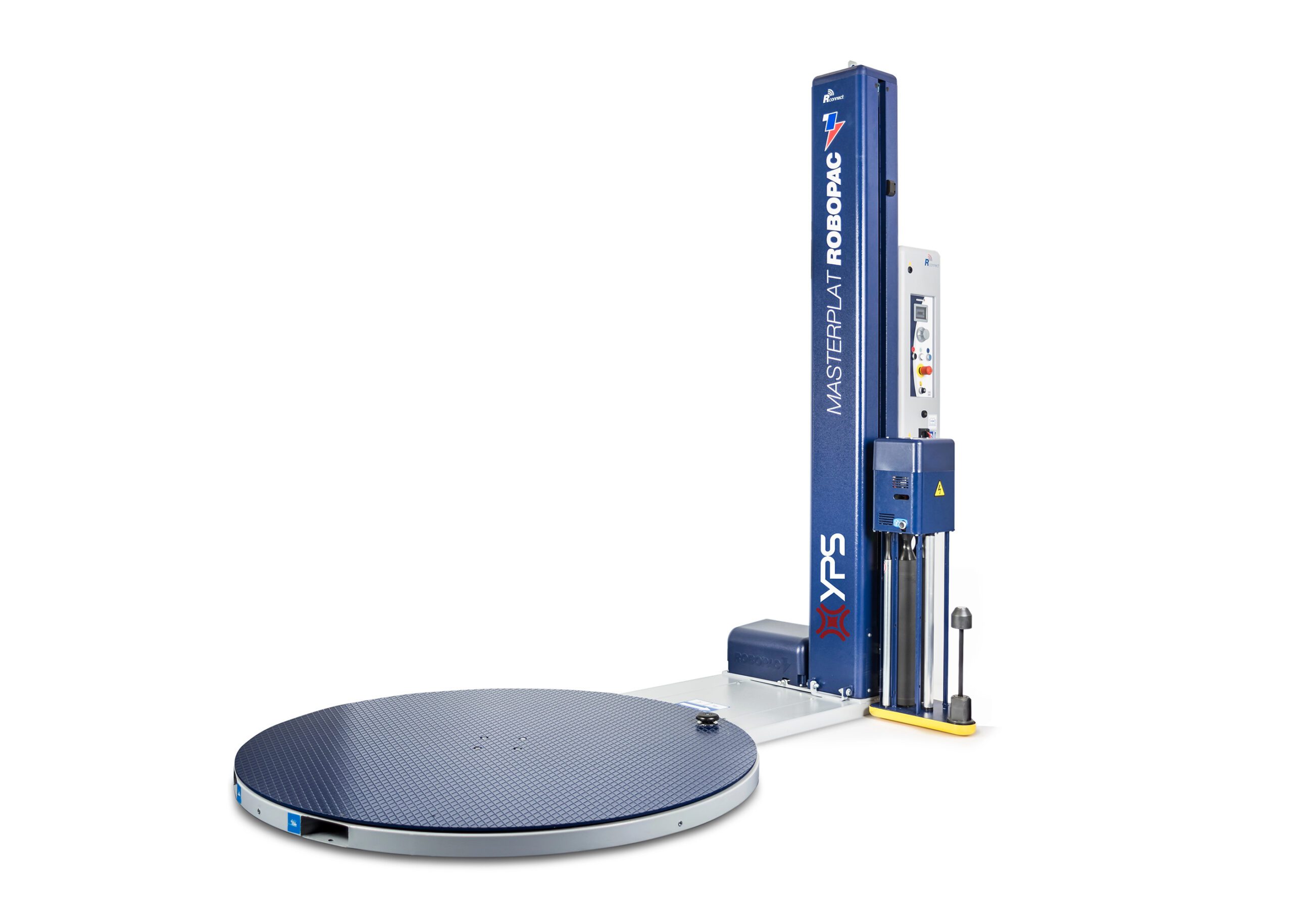

Semi Automatic Turntable
Our semi-automatic turntable model makes pallet wrapping a breeze for any load up to 2200mm high (although 2400mm, 2800mm and 3100mm wrap heights are also available).
Its tool-free drop-on film loading system makes it easy to use. Just deliver your pallet to the turntable using a forklift or pump truck, secure the film, select a pre-set program, activate the machine at the touch of a button and relax.
A low profile version with a stainless steel body and adjustable stretch film carriage is also available.
Applications for Semi Automatic Turntable Machines
Insulation Panels
Sanitary Units
Food
Beverages
Furniture
Building Products
Automotive Products
Mixed Pallets
Trayed Items
Products in Sacks
Boxed Products
Key features
Forklift entry
For total manoeuvrability and precise positioning, the turntable plate has supported internal guides for forklift arms and entry points to the front and rear.
Turntable homing device
The turntable has an inbuilt homing feature meaning that after each wrapping cycle the plate will return to the exact position that it started in. This makes loading and unloading of pallets simple and consistent. Furthermore, the plate has a soft-start and soft-stop feature to maintain pallet stability.
Film attachment device
An optional extra, the film
attachment device allows users to
affix the stretch film to the turntable plate, without having to attach it to a corner of the wooden pallet for increased convenience.
Safety stop plate
This plate travels up and down with the film carriage and acts as a safety guard, detecting any obstructions in the line of motion and triggering an immediate stop. This protects operators from injury. The plate is yellow in colour for complete visibility at all times.
Choice of film carriage
A mechanical brake manually adjustable film carriage offers stretch capacity up to 200%. Alternatively, our fixed powered gear operates at a 250% pre-stretch as standard. Upgraded gears can be supplied to achieve up to 300% stretch. The film carriage mechanism delivers more yield from every roll of film.
Magic eye sensor
Detects the exact height of each pallet for accurate film application.
Simple controls
Intuitive HMI interface for simple controls, pre-programmable memory settings and wrapping cycles. Easy to use with clear user-friendly instructions and password-protected operation.
Forklift entry
For total manoeuvrability and precise positioning, the turntable plate has supported internal guides for forklift arms and entry points to the front and rear.
Turntable homing device
The turntable has an inbuilt homing feature meaning that after each wrapping cycle the plate will return to the exact position that it started in. This makes loading and unloading of pallets simple and consistent. Furthermore, the plate has a soft-start and soft-stop feature to maintain pallet stability.
Film attachment device
An optional extra, the film
attachment device allows users to
affix the stretch film to the turntable plate, without having to attach it to a corner of the wooden pallet for increased convenience.
Safety stop plate
This plate travels up and down with the film carriage and acts as a safety guard, detecting any obstructions in the line of motion and triggering an immediate stop. This protects operators from injury. The plate is yellow in colour for complete visibility at all times.
Choice of film carriage
A mechanical brake manually adjustable film carriage offers stretch capacity up to 200%. Alternatively, our fixed powered gear operates at a 250% pre-stretch as standard. Upgraded gears can be supplied to achieve up to 300% stretch. The film carriage mechanism delivers more yield from every roll of film.
Magic eye sensor
Detects the exact height of each pallet for accurate film application.
Simple controls
Intuitive HMI interface for simple controls, pre-programmable memory settings and wrapping cycles. Easy to use with clear user-friendly instructions and password-protected operation.
Features & Benefits
Ideal wrapping
Select from six pre-programmable cycles and speeds of between 5 and 12 rotations per minute to create the ideal combination for your operation.
Secure Loads
Produces a consistent, secure wrap for enhanced pallet protection for transit or storage.
Easy operation
Simple controls courtesy of an intuitive touch screen system and straightforward pallet and film loading for ease of use by operators.
Versatile system
Can be utilised for a wide variety of prepared pallets, including Euro and CHEPS, and for heights of up to 3100mm.
Strong and durable
Long-lasting, solidly constructed equipment, which can accommodate loads of up to 2000Kg.
Ideal wrapping
Select from six pre-programmable cycles and speeds of between 5 and 12 rotations per minute to create the ideal combination for your operation.
Secure Loads
Produces a consistent, secure wrap for enhanced pallet protection for transit or storage.
Easy operation
Simple controls courtesy of an intuitive touch screen system and straightforward pallet and film loading for ease of use by operators.
Versatile system
Can be utilised for a wide variety of prepared pallets, including Euro and CHEPS, and for heights of up to 3100mm.
Strong and durable
Long-lasting, solidly constructed equipment, which can accommodate loads of up to 2000Kg.
Testimonials
Discover more about Semi Automatic Standard Turntables

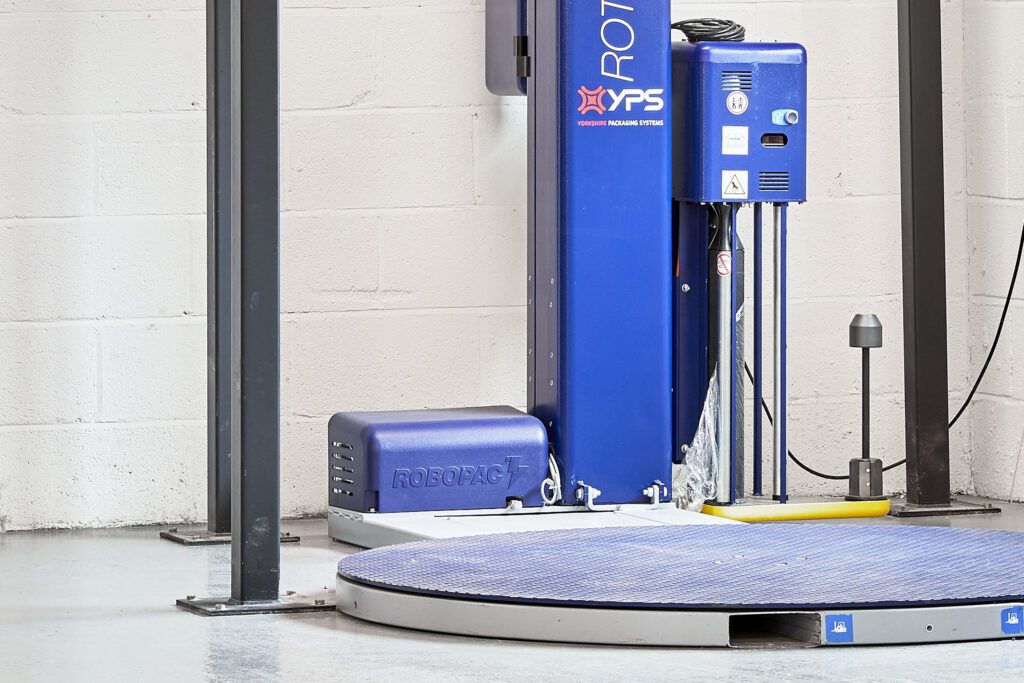

Choice of Film carriage
This stretch wrapping machine comes with a choice of film carriage device.
The FRD carriage has a manually adjustable mechanical brake for film tensioning and a brake engagement release device for easy film hooking to the pallet. Alternatively, the PGS carriage includes a powered fixed gear pre-stretch system (250%), with additional gear sets available (150%-200%-300%).
Both incorporate a quick loading system for easy film threading, 250% stretch and variable ‘lay on force’. Users can set the following adjustable parameters in each programme:
- Bottom wraps
- Top wraps
- Rotation speed
- Carriage speed variable up and down
- Full wrapping cycle (up and down)
- Single wrapping cycle (up only)
- Single wrapping cycle (down only)
- Manual option available
- Top sheet cycle
There is also a film banding facility, to allow extra wrap at any point on the pallet that needs strengthening.
R-CONNECT TECHNOLOGY
Our semi-automatic models can be equipped with R-Connect technology, enabling cloud-based monitoring of your machine’s performance.
This advanced software provides valuable data on productivity, including the number of pallets wrapped, machine stoppages, and overall operations. At any time you can access this detailed information at your fingertips. R-Connect also suggests any potential performance improvements.
Using the detailed analysis available, YPS can help lower stretch film usage, increase capacity or reduce wraps, ultimately cutting long-term costs. Additionally, R-Connect allows for remote assistance from our engineers, addressing 90% of issues without on-site visits and minimising downtime.
Award-Winning Support
We support customers at every step of their automated packaging journey, a commitment recognised by YPS being two-time winners of Automate UK’s prestigious Customer Service award.
Our service includes:
- A free service contract with every machine sold.
- Installation and commissioning overseen by our in-house, specialist engineering team.
- Free and unlimited operator training.
- Access to engineering experts out of hours and throughout the year.
- Spare parts for all machines supplied, held in stock at our UK warehouse.
- Extensive stocks of packaging materials, also held at our UK warehouse and available for next-day despatch.
Related machines

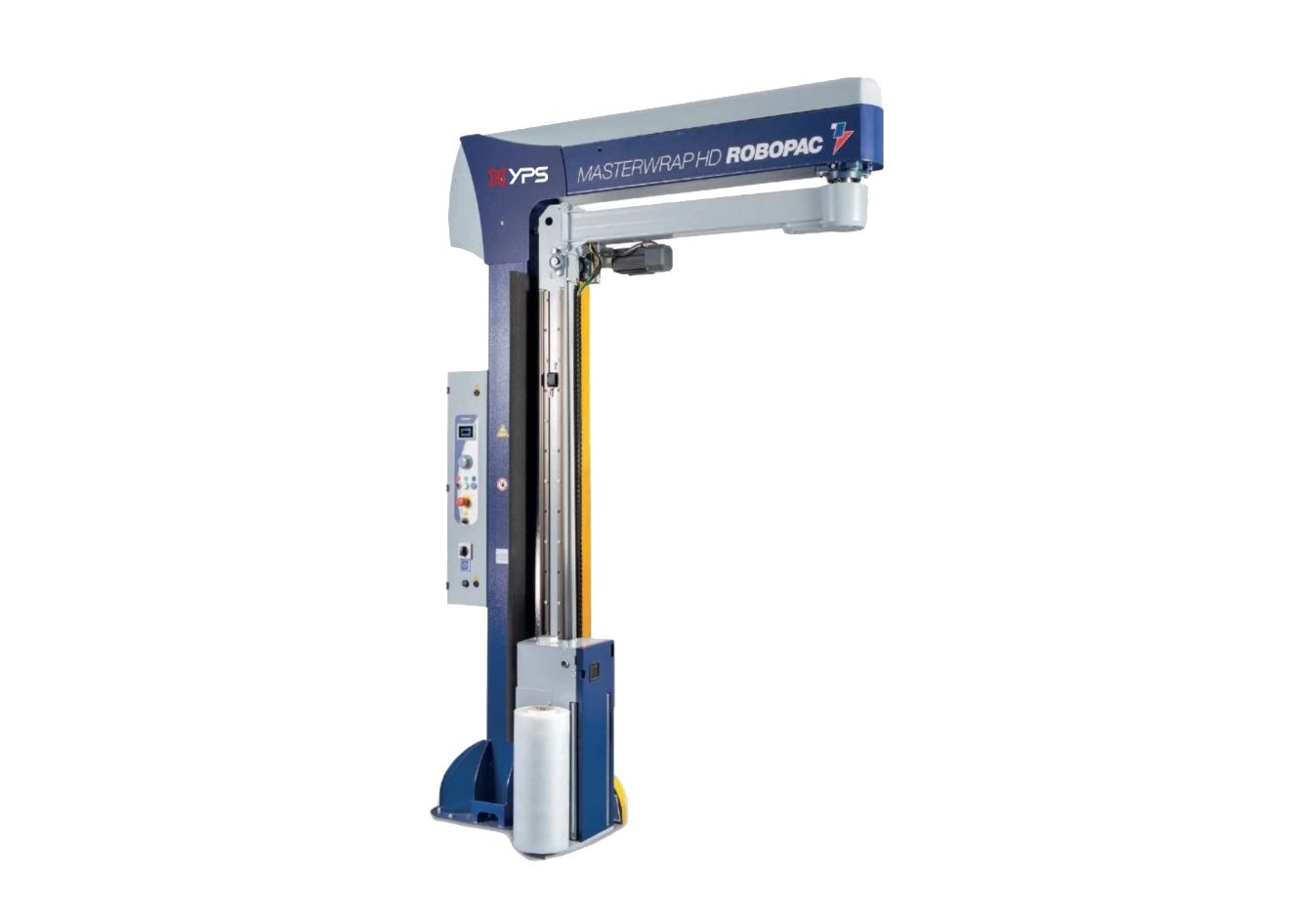

Perfect for heavy and unstable products or irregular pallets that need to remain stationary. Boasts six programmable settings and its sturdy build can handle reels weighing up to 20kg.
- Handles stretch up to 300%
- Up to 11 arm rotations per minute
- Innovative film insertion system
- Touchscreen controls for ease of use
- Optional R-connect- smart industry 4.0 tech

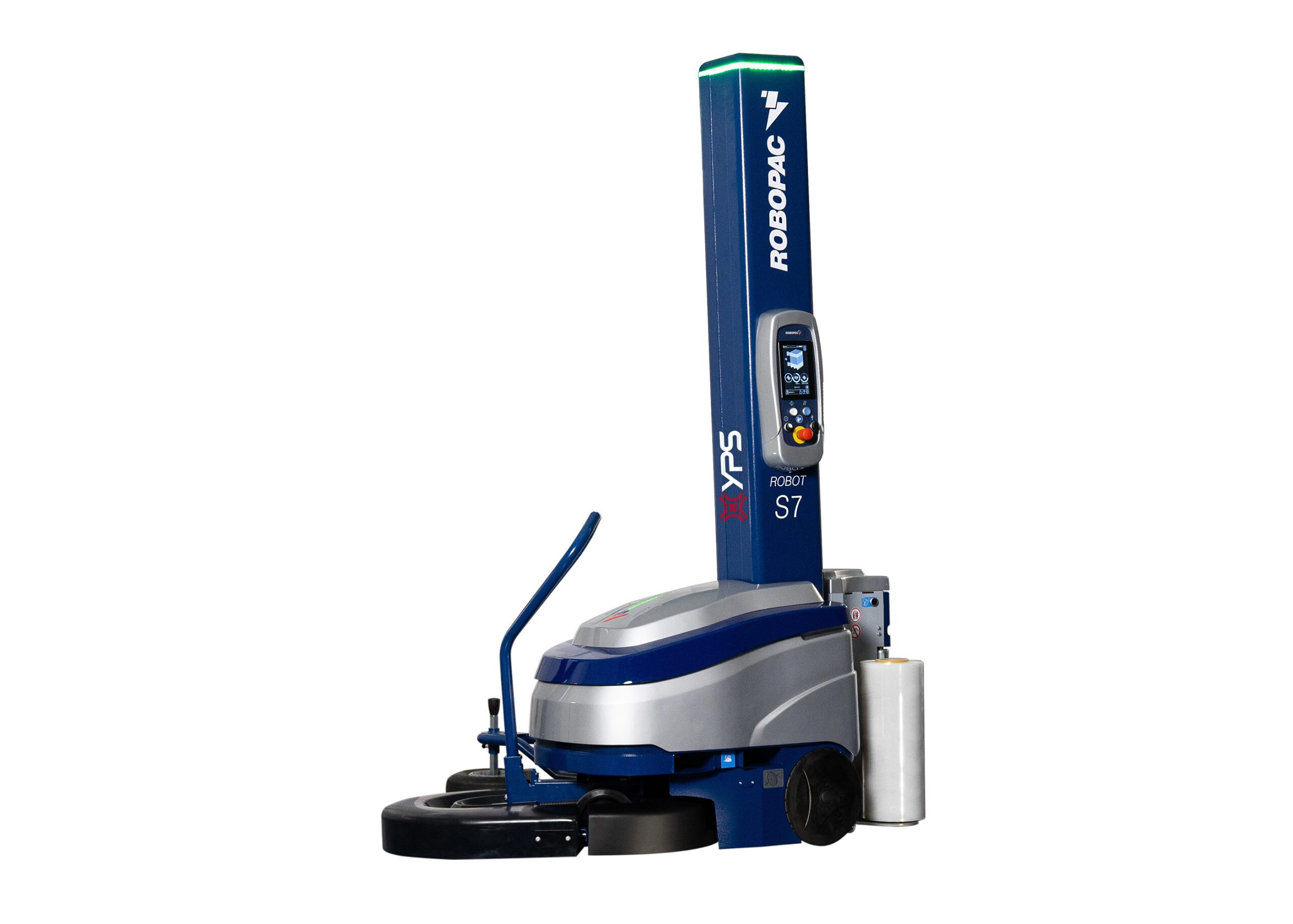

A small but powerful warehouse staple. Discover our portable, self-propelled robotic stretch wrapping system boasting stretch capacities up to 500%. The range includes four film carriage options.
- Conforms to the dimension of any pallet
- Perfect for warehouses with multiple wrapping locations or limited space
- Multiple features for safe operation
- Optional R-Connect integration
- Intuitive controls and pre-programmable settings

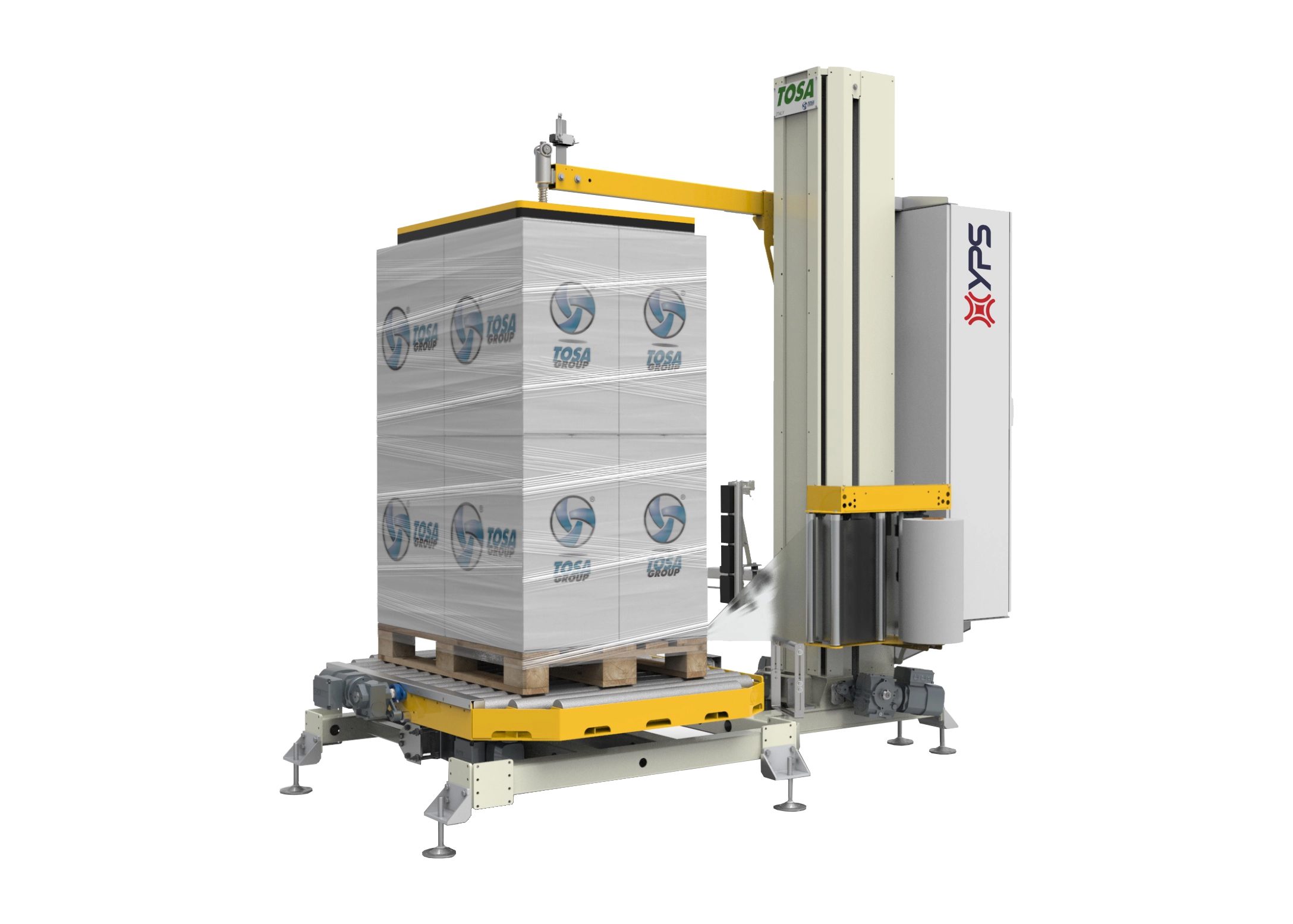

Our fully automatic turntable machine comfortably achieves speeds of up to 40 wrapped pallets per hour with a low-maintenance, high-performance, safety-first design and build.
- Rotation speeds of 16 rotations per minute
- Low maintenance design
- Smart wrapping technology for mid-cycle adjustments
- Anti-fall system and film carriage safety stop
- Dust-proof and waterproof wrapping cycles as standard
