Endlessly flexible - a fast and efficient all-rounder for display applications.

Our German-engineered Hugo Beck Flexo X is the most versatile model in our side sealing collection, capable of sealing packs of any length with complete ease. This machine is modular, flexible and offers impressive returns on investment. The Flexo X provides reliable and stable side seals for all shrink films, including bio-sourced polyolefin, polythene, polypropylene and also barrier films for a truly flexible wrapping solution.

Request a quote
Download the brochure
45 years unrivalled service
world-leading products
award-winning customer service

tech specs

Speeds

Up to 80 packs per minute or 6,000 cycles per hour. These speeds are unbeatable at this level of equipment.

Dimensions & weight

2.3m Long x 2.0m Wide x 1.4m High and up to 700kg.

Power supply

5 amps, 3kW.

Product flow

Left to right as standard (opposite handing is possible).

Compatible materials

Polyolefin, polythene, polypropylene, barrier films and bio-based films. Both single-wound and centrefolded films can be run.

Service contract

Included as standard.

Key features

simple to use

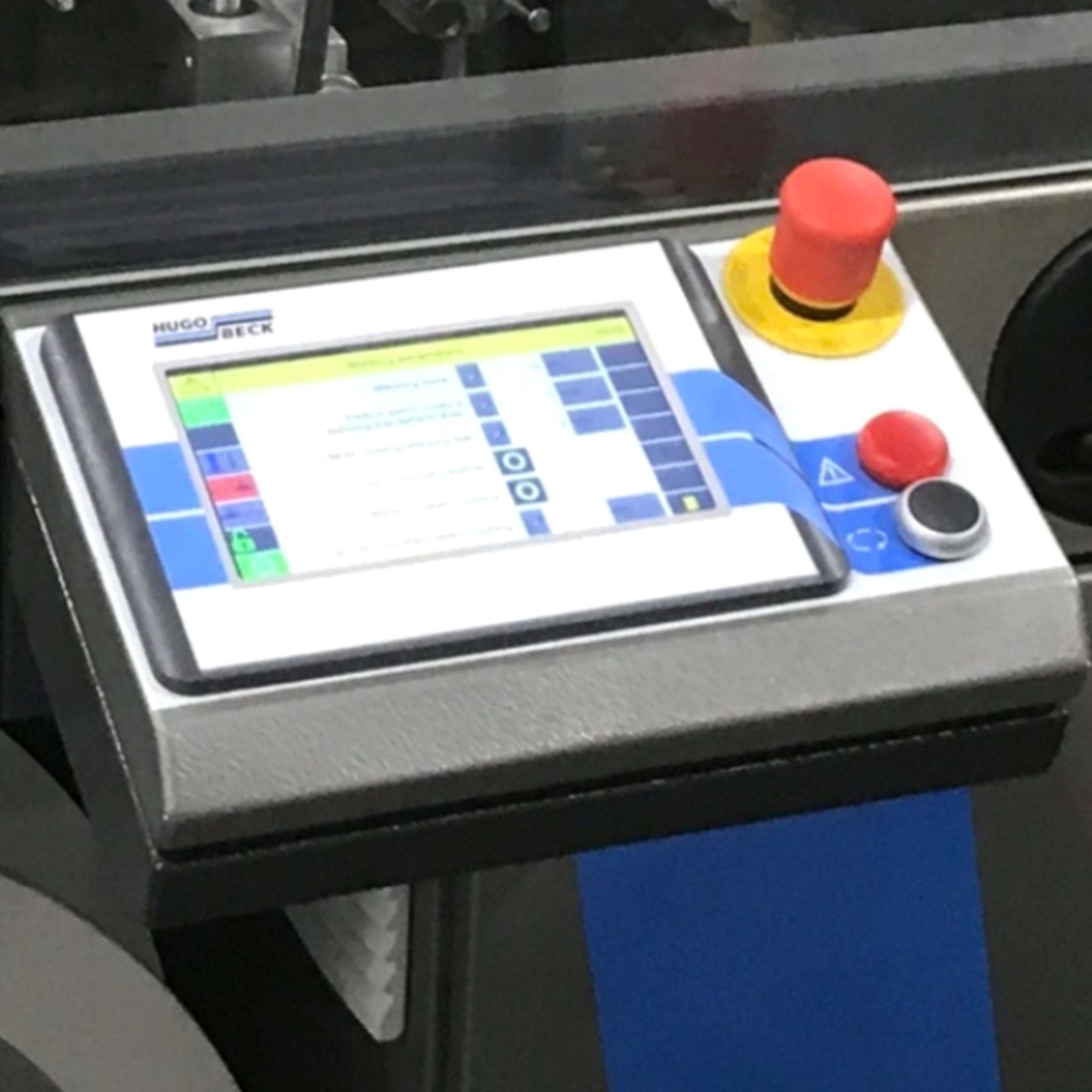

The Flexo model offers extremely fast format changeovers on a wide variety of products without the need for any tools, thus significantly reducing machine and production downtime. The machine is operated via a full colour touch screen with simple operator guidance system that makes changing parameters or adjusting settings - even during production - a breeze. All data can be easily stored for repeat jobs.

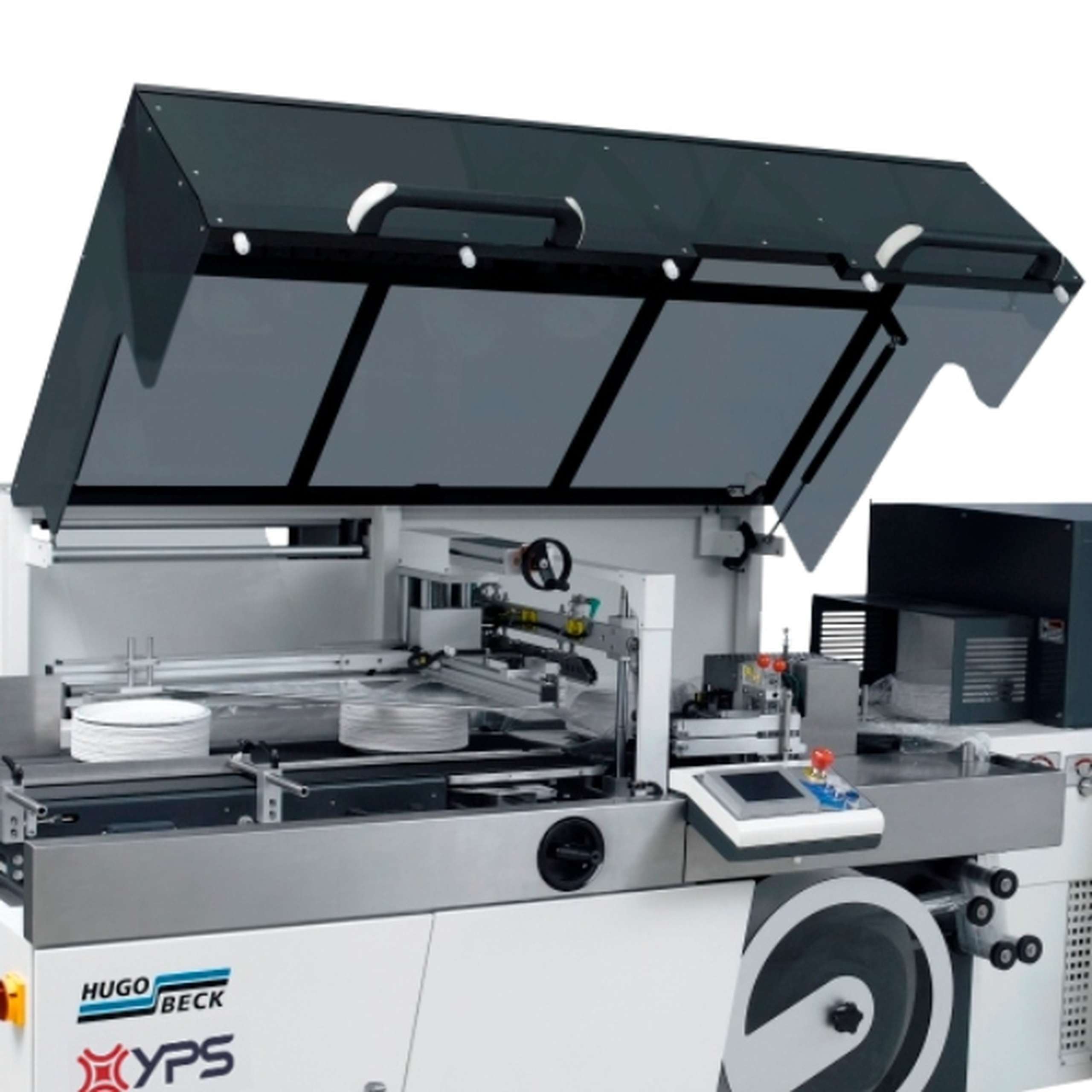

The model also offers a unique film path control ensuring absolute consistency and pack repeatability even at high speeds. ALternatively, automatic setup is available as an option providing a smooth, efficient set up process. The film roll holder sits low to the ground for easy loading and unloading and film threading is effortlessly simple. Even maintenance and servicing is hassle-free; all the key components of the machine are accessible via quick release interlocked guards, meaning there is no need to move or dismantle parts. All panels can also be easily removed allowing for total access to all aspects of the unit.

The Flexo X offers options for automatic, motorised height adjustment of cross sealing, side sealing and forming shoulder.

features

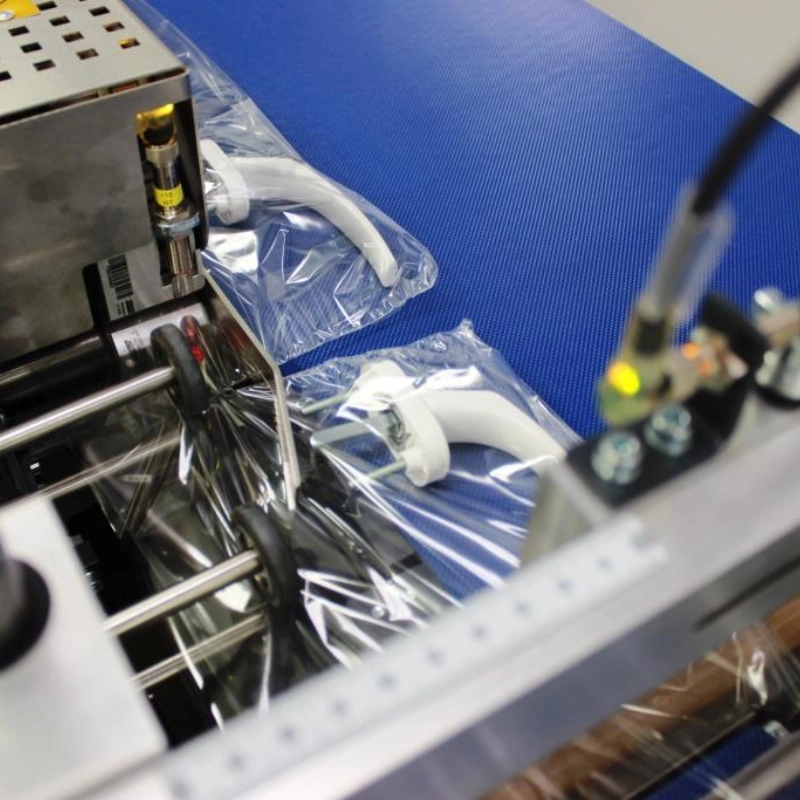

adapts to any size product

The Flexo X can adapt to seal packs of any length or configuration with complete ease. Small items like credit cards are wrapped just as professionally as long packs of giftwrap paper, pairs of skis, floorboards or insulation panels. Plus, its soft-start and soft-stop features driven by inverters are ideal for collated or unstable packs to promote pack integrity and they greatly aid the use of much thinner and narrower films without tearing. Built to achieve high production output, even with frequent format changes, the Flexo X responds effortlessly to your product's needs. The sealer conforms to the product's dimensions to create tight bags, minimising film waste and optimising their aesthetics for a tightly shrunk, wrinkle-free finish.

our Flexo X side sealers can wrap

Food & Beverage

Pictures & Frames

Toys & Games

Personal Care

Printed Materials

Stationery

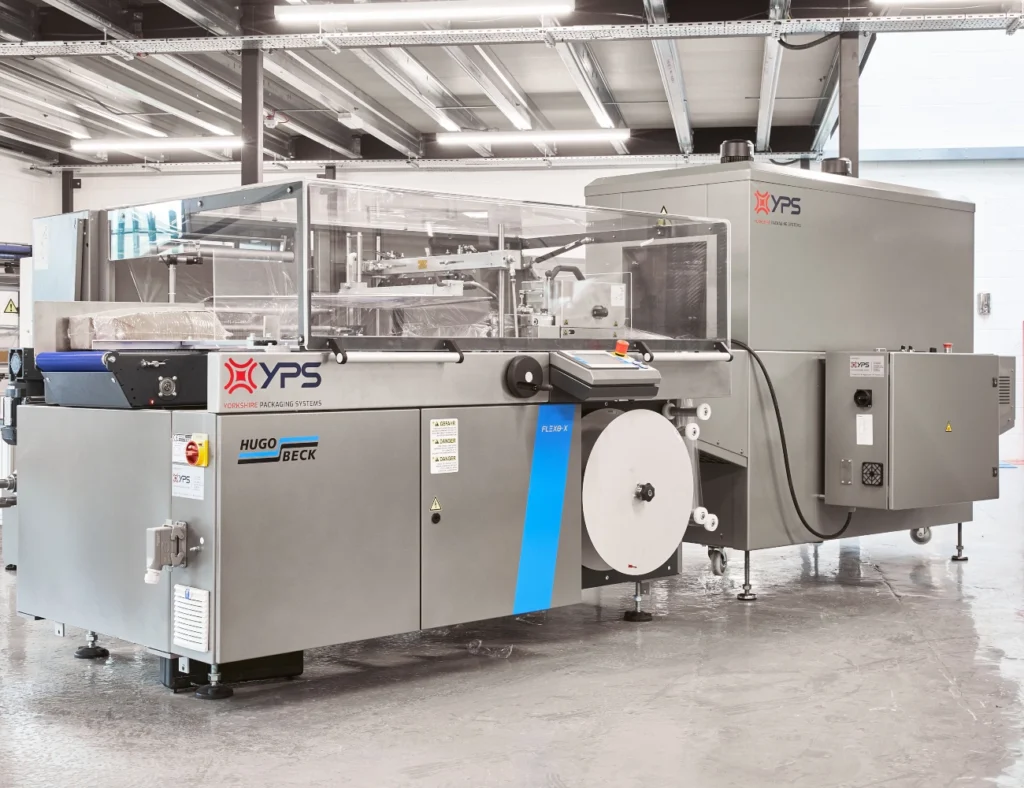

choice of finish

mild or stainless steel

The Flexo X can be supplied in either mild steel or rust-preventing stainless steel. The stainless finish is ideal for harsh environments that may subject the equipment to spillages or chemical cleaning agents. In these conditions, a stainless steel frame helps to maintain a hygienic food-grade operation with enhanced longevity.

Total solution from YPS

Hugo Beck have always recommended the use of shrink films manufactured by Bollore, who are widely regarded as the world leaders in thin film technology. As the UK's only distributor of Bollore films, YPS can pair your Hugo Beck wrapping lines with Bollore's flexible film tech for unrivalled performance and results. All of our exceptional shrink films are available for next day delivery from stock.

features

Backup and support

Any downtime on a high speed line is magnified greatly compared to a low speed line and so for this reason backup and support – should it be needed – must be first class. With any issue the first step is diagnosis and so all Hugo Beck equipment has a built in router allowing YPS or the Hugo Beck team in Germany to dial directly into the machine and investigate the equipment remotely. This can be done in minutes and allows in many instances the issue to be fixed remotely. Once diagnosis is complete, full on-site engineering support is provided to solve issues if required. At YPS, we are the proud winners of the PPMA customer service award which recognised our investment in and commitment to technology for improved backup and support.

after-sales support
Simple Centered Branded Icon

book a showroom visit

If you’re considering a investment in new technology, come and visit our showroom in Yorkshire and see our machines in action. Our friendly team will be on hand to discuss any aspects of your project and answer any questions.
