Semi Automatic L Sealer Combination Unit

Semi Automatic L Sealer Combination Unit

Designed for flexibility and simplicity with the use of an operator.

Including both a modular all-in-one unit as well as a separate sealer and heat tunnel system, our semi-automatic range is suitable for low to moderate volume and speed production lines that utilise operators for pack loading. Capable of wrapping a diverse array of products, our semi-automatic L sealers produce immaculate results for display items, boasting a totally enclosed, tightly shrunk finish in polyolefin film.

View our full range of shrink wrapping machines here

Request a quote
Download the brochure
45 years unrivalled service
world-leading products
award-winning customer service

tech specs

throughput speed

Achieve up to 30 cases per minute.

dimensions

Available in two sizes, dependent on the L sealer frame size. Choose from a length of 2.3m by 1.1m wide and 1.5m high or a length of 2.6m by 1.3m wide and 1.5m high.

machine weight

Has a maximum weight of 500kg.

power supply and temperature

220V, 50-60Hz, 1 Phase. Has a maximum temperature of 240°C.

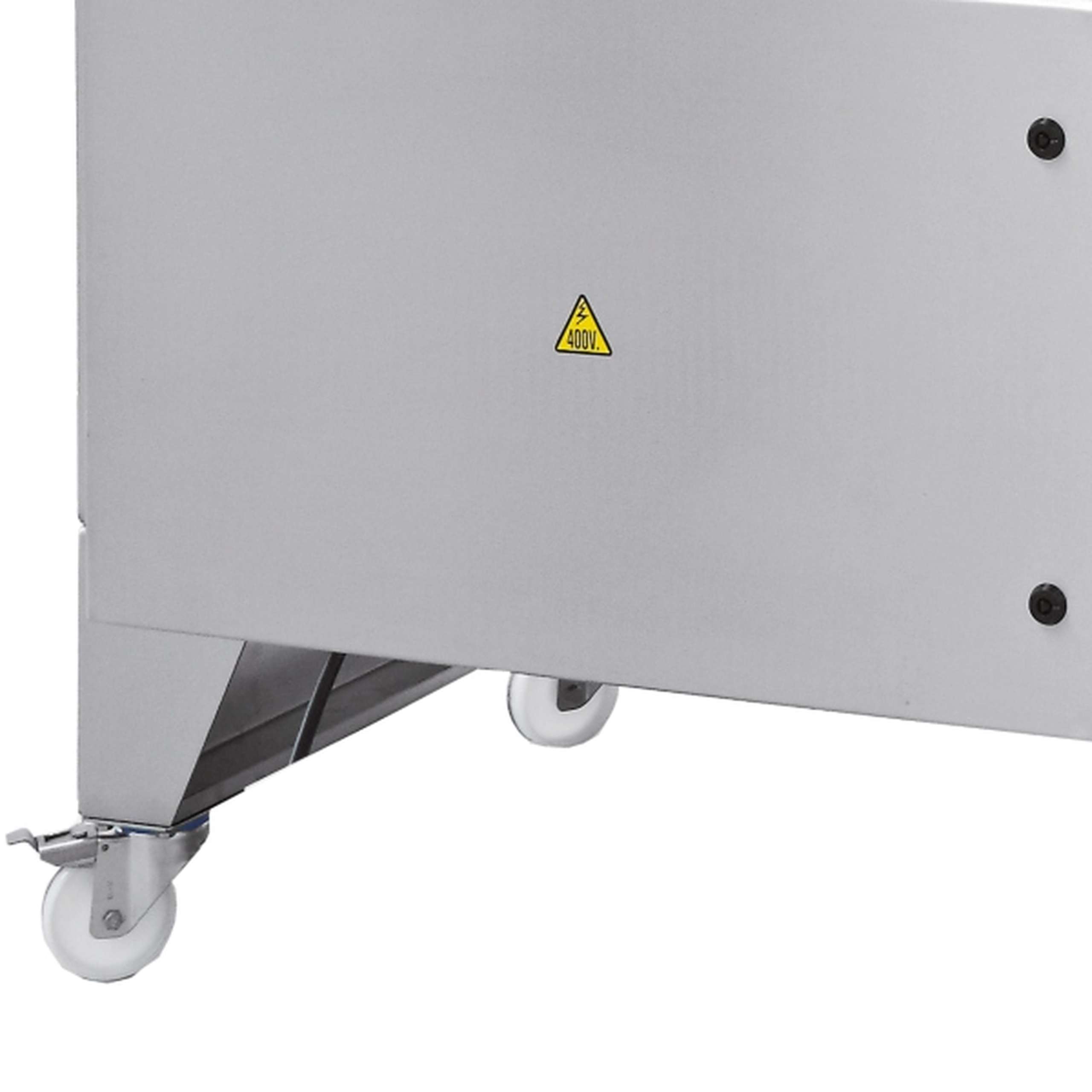

A CHOICE OF FRAMEWORK

Available in mild and stainless steel.

service contract

Included as standard.

Key features

our L sealer combination machines can wrap

Food & Beverage

Pictures & Frames

hampers & gifts

Toys & Games

retail items

Personal Care

features

Easy to use and durable

Our 'monoblock' semi auto l sealer and shrink tunnel combination wrapper is an extremely popular alternative to utilising separate machines. It’s incredibly easy to use and manoeuvre, its durable, robust and reliable and it offers excellent, consistent results on all shrink film specifications, especially polyolefin.

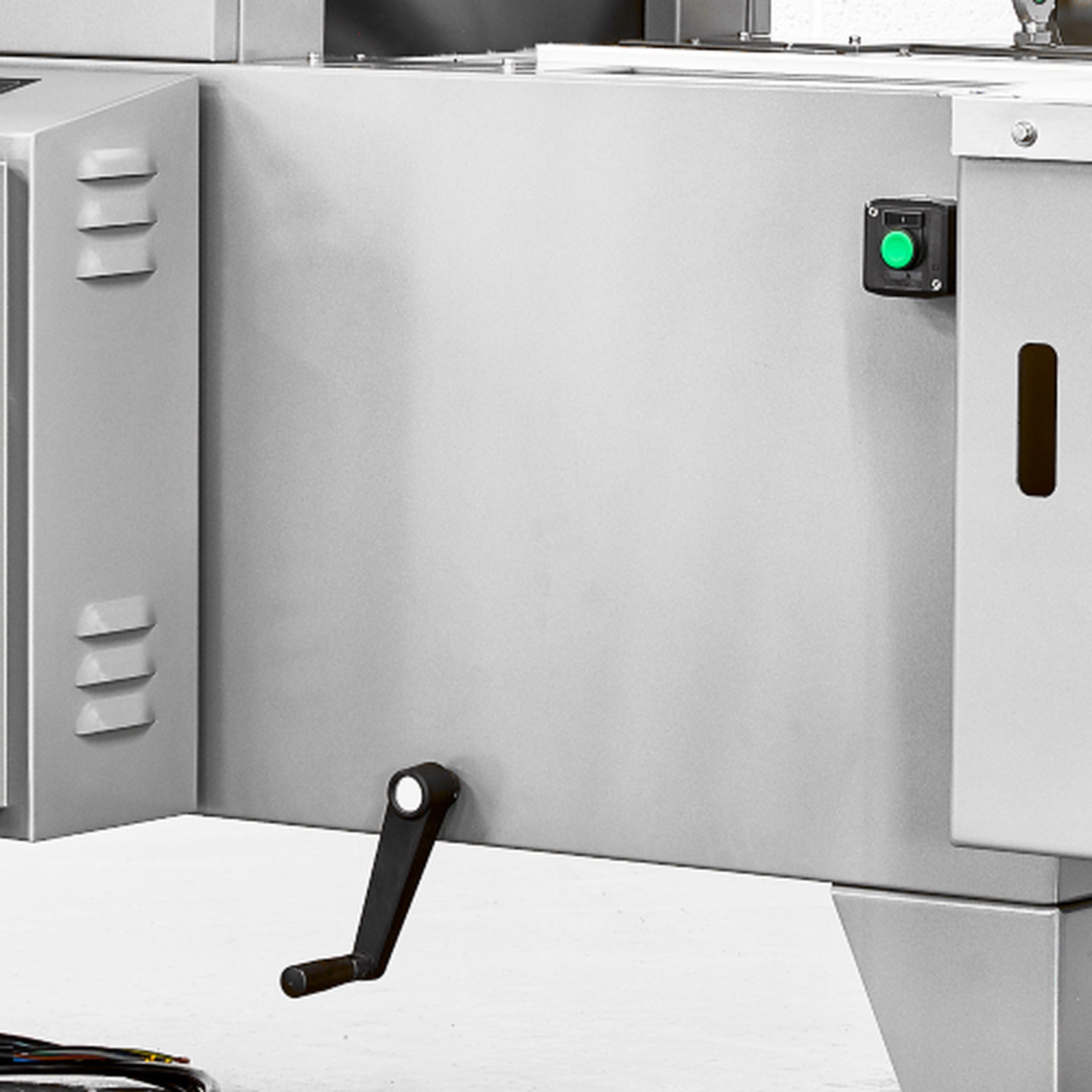

One of the key benefits of a combination unit – compared to a separate L sealer and shrink tunnel – is the smooth and constantly level transfer of packs from sealer to tunnel. As the packing table on the heat sealer is lowered or raised to accommodate different sized products, the shrink tunnel bed also raises and lowers to the same height for transfer purposes. This is vital to keep unstable packs such as collations or very tall packs upright, where product movement can be critical to the final pack presentation, by guaranteeing a neat, centrally located seal on every pack.

The combination unit does require an operator and as such provides complete flexibility compared to a fully automatic machine.

Keith Westwood, L.G. Harris

"After purchasing a semi-automatic machine from you I would like you to know how satisfied I am with the equipment. The machine has taken our production efficiency to another level."

benefits

unique features

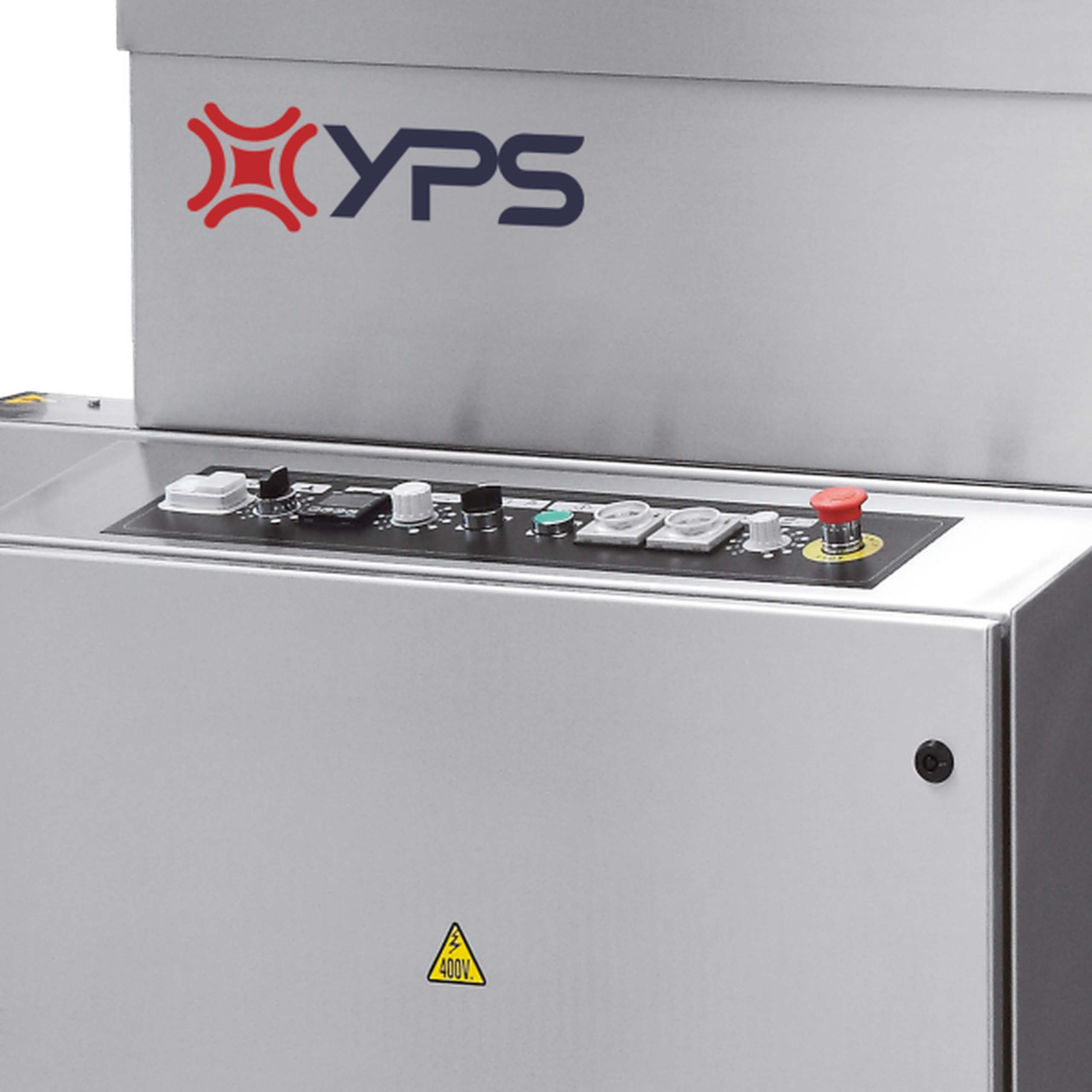

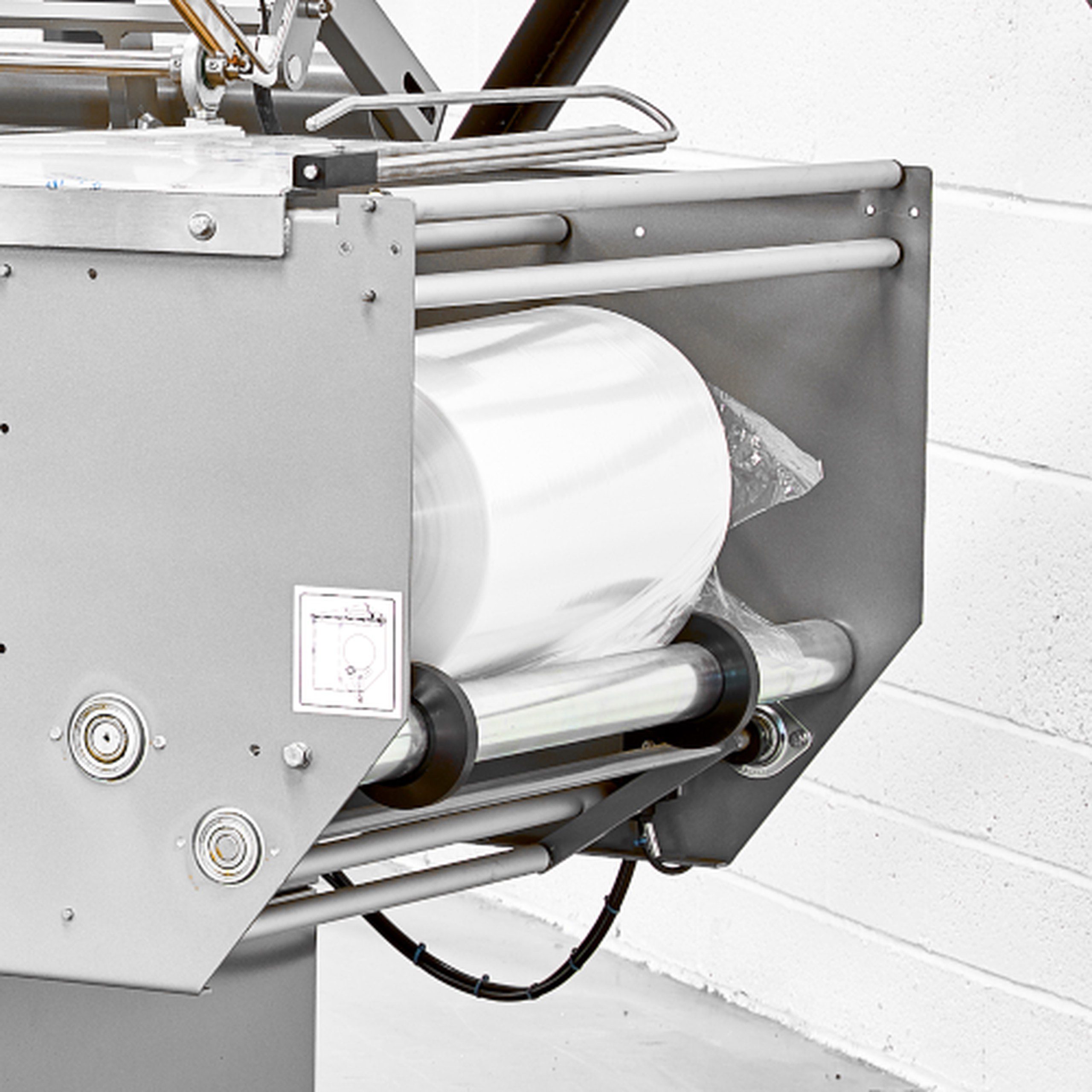

With a low maintenance philosophy at the heart of their design, these semi automatic L-sealers benefit from a number of easy to use features. An automatic sealing head is incorporated for fast sealing action at pre-programmed interval cycles or via the simple press of a button. A powered film feed effortlessly draws the film into the sealing area and a belt take-off automatically transfers the sealed packs into the shrink tunnel for an exertion-free operation. Meanwhile the semi auto l sealer's heavy-duty sealing frame ensures maximum seal strength time after time, whilst consistency in end pack presentation is achieved via regulated air flow coupled with precise temperature control.

The combination unit has become one of our most popular models for medium speed display packaging applications with a reputation for robustness and reliability. An exceptional aesthetic is always achieved using either polyolefin or polythene shrink film.

Unrivalled experience with YPS

We have over 45 years of experience in shrink wrapping machines which means whatever your need, we have a system to fit. We can supply an off the shelf solution or something more bespoke with a range of ancillary equipment to ensure we exceed all your expectations. You can hear more about our high standards of service in our case study pages.

Simple Centered Branded Icon

book a showroom visit

If you’re considering a investment in new technology, come and visit our showroom in Yorkshire and see our machines in action. Our friendly team will be on hand to discuss any aspects of your project and answer any questions.

Find out more
