Semi Automatic Robot Wrappers

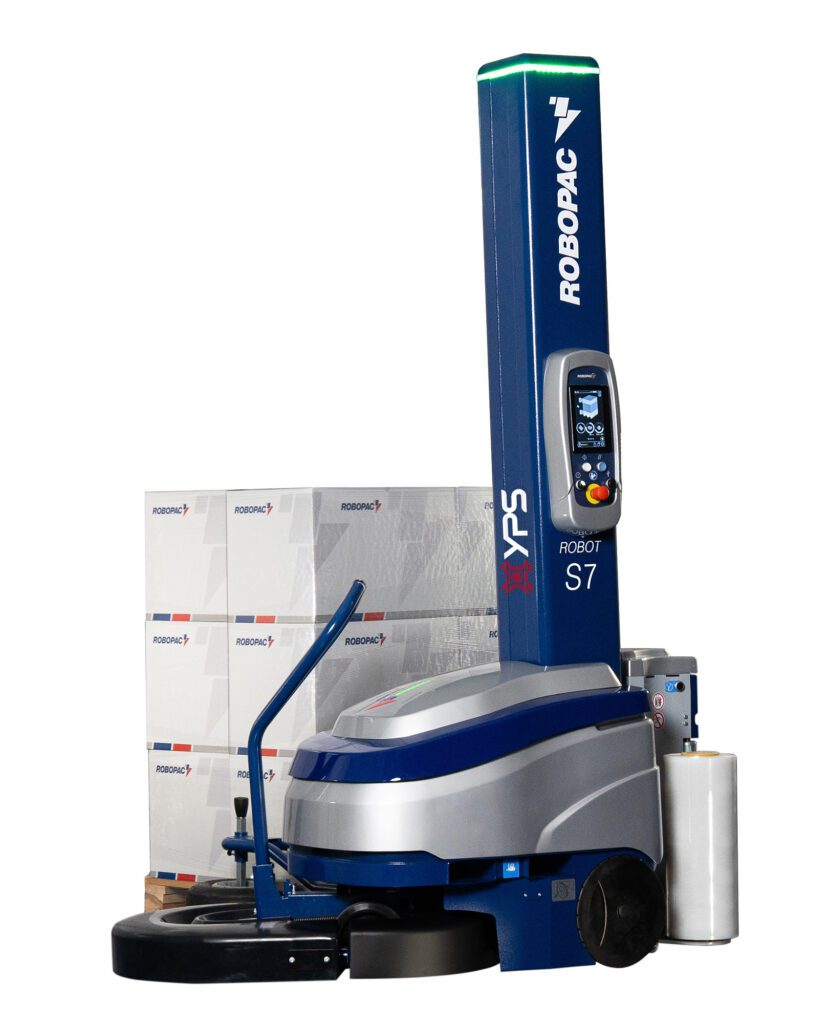

The S7 is our self-propelled robot, designed to offer a busy factory or warehouse the ultimate flexibility and ease of use compared to static machines.
These compact and portable pallet wrappers are incredibly easy for your operators to move around in a dynamic workstation and have a raft of inbuilt safety features to protect your team.
Using a robot to bring the wrapper to the pallet negates the need for a fork truck in your despatch area.
Applications for Semi Automatic Robot Wrappers
Windows & Doors
Insulation Panels
Furniture
Building Products
Automotive Products
Food
Beverages
Products in Sacks
Chemical Drums
Sanitaryware
Printed Materials
Mixed Pallets
Boxed Products
Trayed Items
Key features
Sensory Wheel
The wheel senses the exact dimensions of the pallet and allows for a close application of the pallet wrap film to prevent material waste and ensure pallet integrity. This feature allows any shape of pallet to be accommodated.
Safety Bumper
Whenever an obstruction is detected by the safety bumper, this triggers an immediate halt in motion. This offers protection to your operators and any product in the pathway of the machine.
A choice of film carriages
Choose from the FRD, FR, P3GS and PVS film carriages, which all offer an array of benefits, including stretch capacities ranging from 0%-500% and easily adaptable tension and stretch controls.
Touchscreen Controls
The multicolour touchscreen allows the user to create and save 12 custom programmes in a simple and intuitive way. A highlight is the 'MLC' film containment force setting which offers cost-saving benefits and enhances the protection for vulnerable parts of the pallet.
Mounted Signal Light
Coloured lights flash whilst the robot is in motion for safety purposes.
Sensory Wheel
The wheel senses the exact dimensions of the pallet and allows for a close application of the pallet wrap film to prevent material waste and ensure pallet integrity. This feature allows any shape of pallet to be accommodated.
Safety Bumper
Whenever an obstruction is detected by the safety bumper, this triggers an immediate halt in motion. This offers protection to your operators and any product in the pathway of the machine.
A choice of film carriages
Choose from the FRD, FR, P3GS and PVS film carriages, which all offer an array of benefits, including stretch capacities ranging from 0%-500% and easily adaptable tension and stretch controls.
Touchscreen Controls
The multicolour touchscreen allows the user to create and save 12 custom programmes in a simple and intuitive way. A highlight is the 'MLC' film containment force setting which offers cost-saving benefits and enhances the protection for vulnerable parts of the pallet.
Mounted Signal Light
Coloured lights flash whilst the robot is in motion for safety purposes.
Features & Benefits
Saving Costs
Using R connect technology YPS can look to lower stretch film micron or heighten stretch capacity, reducing running costs.
Product Flexibility
You can wrap any shape or size of pallet, whether irregular or standard format and even cylindrical products.
Ideal finished wrap
Choice of four film carriages allows the perfect selection for your product range, resulting in an excellent finish.
Labour saving
Designed to move around your warehouse as required with minimal interaction.
Innovative film insertion system
Easy threading of film with clear guided diagrams, facilitating fast changeover of film reels.
Value-added features
A number of optional features are available including a film roping device and an automatic film cutting device.
Saving Costs
Using R connect technology YPS can look to lower stretch film micron or heighten stretch capacity, reducing running costs.
Product Flexibility
You can wrap any shape or size of pallet, whether irregular or standard format and even cylindrical products.
Ideal finished wrap
Choice of four film carriages allows the perfect selection for your product range, resulting in an excellent finish.
Labour saving
Designed to move around your warehouse as required with minimal interaction.
Innovative film insertion system
Easy threading of film with clear guided diagrams, facilitating fast changeover of film reels.
Value-added features
A number of optional features are available including a film roping device and an automatic film cutting device.
Testimonials
Discover more about our Semi Automatic Robot Wrappers
A range of film carriages
Robot FRD is our entry-level model, featuring a standard core break system for lower stretch capacity films (6.3mu to 35mu) and has 3 programs with 10 adjustable parameters.
Robot FR includes an electro-magnetic powder break on the return roller. This feature is operated via the control panel, offering a user-friendly way of adjusting tension.
Robot P3GS matches the performance of top machines with motorised pre-stretch technology, achieving up to 300% film stretch. It offers 3 fixed stretch programs and 10 adjustable parameters via a digital HMI screen.
Robot PVS offering the highest performance with a power pre-stretch carriage that can stretch films between 6.3mu and 35mu up to 500%. It features 12 pre-set programs and 10 adjustable parameters, all controlled from the digital HMI screen.

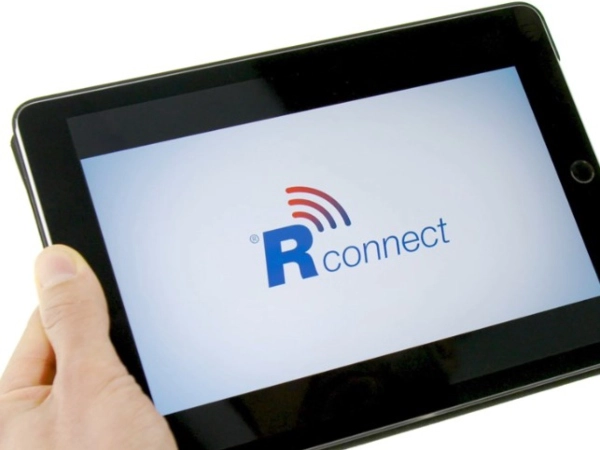

R-CONNECT TECHNOLOGY
Our semi-automatic models can be equipped with R-Connect technology, enabling cloud-based monitoring of your machine’s performance.
This advanced software provides valuable data on productivity, including the number of pallets wrapped, machine stoppages, and overall operations. At any time you can access this detailed information at your fingertips. R-Connect also suggests any potential performance improvements.
Using the detailed analysis available, YPS can help lower stretch film usage, increase capacity or reduce wraps, ultimately cutting long-term costs. Additionally, R-Connect allows for remote assistance from our engineers, addressing 90% of issues without on-site visits and minimising downtime.
Award-Winning Support
We support customers at every step of their automated packaging journey, a commitment recognised by YPS being two-time winners of Automate UK’s prestigious Customer Service award.
Our service includes:
- A free service contract with every machine sold.
- Installation and commissioning overseen by our in-house, specialist engineering team.
- Free and unlimited operator training.
- Access to engineering experts out of hours and throughout the year.
- Spare parts for all machines supplied, held in stock at our UK warehouse.
- Extensive stocks of packaging materials, also held at our UK warehouse and available for next-day despatch.
Related machines
Perfect for heavy and unstable products or irregular pallets that need to remain stationary. Boasts six programmable settings and its sturdy build can handle reels weighing up to 20kg.
- Handles stretch up to 300%
- Up to 11 arm rotations per minute
- Innovative film insertion system
- Touchscreen controls for ease of use
- Optional R-connect- smart industry 4.0 tech
An entry level power pre-stretch turntable model, with six pre-programmable cycles. Impressive performance combined with an economical investment.
- Stainless steel, low profile & high stretch versions available
- Six pre-programmable wrapping cycles
- Speeds of up to 12 rotations per minute
- A choice of film carriage
- Intuitive touch screen controls
An ideal solution for heavy or unstable pallets, where pallets need to be kept motionless.
- Dust and water proof wrapping cycle as standard.
- Speed capabilities up to 160 wrapped pallets per hour
- Handles stretch up to 400%
- Superior build quality
- Can be integrated with upstream and downstream systems
