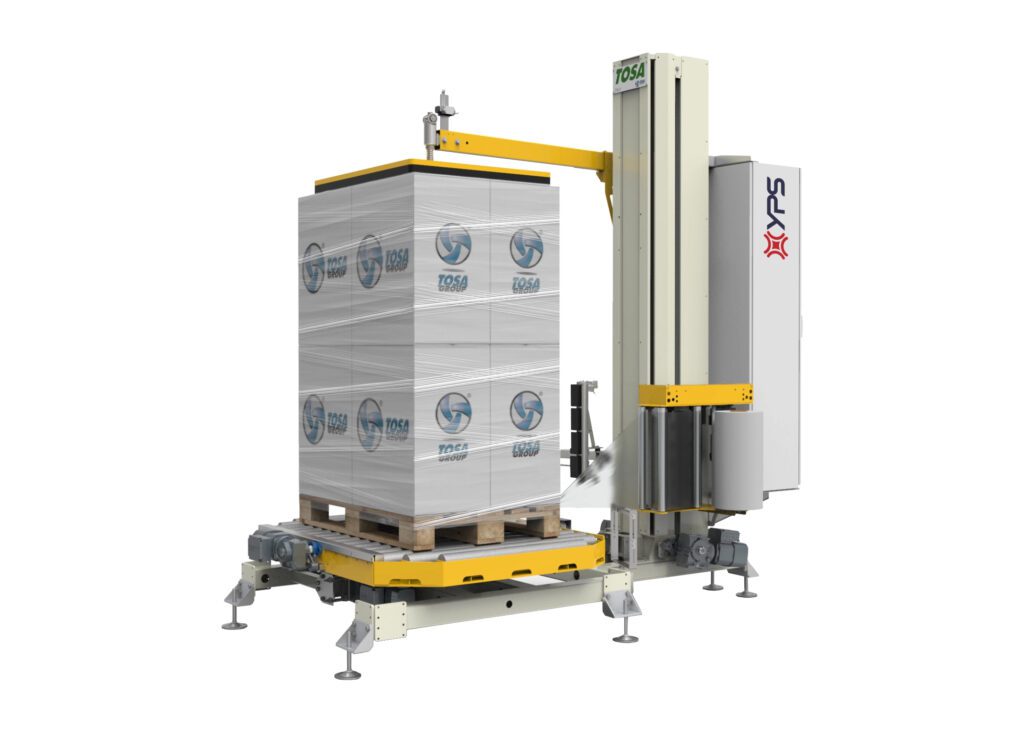

Fully Automatic Turntable
The YPS turntable unit provides a steady and compact wrapping solution for palletised loads using stretch film.
It prioritises operator safety with features like a film carriage safety stop and an anti-fall system, allowing safe navigation around the machine.
Designed with a ground-level motor, it eliminates the need for potentially dangerous overhead inspections.
Achieving top speeds of up to 40 wrapped pallets per hour, the fully automatic turntable wrapper benefits from a soft-start and soft-stop operation for pallet security as well as user safety.
Applications for Fully Automatic Turntable Machines
Windows & Doors
Food
Insulation Panels
Trayed Items
Sanitary Units
Mixed Pallets
Furniture
Boxed Products
Building Products
Products in Sacks
Automotive Products
Printed Materials
Chemical Drums
Beverages
Key features

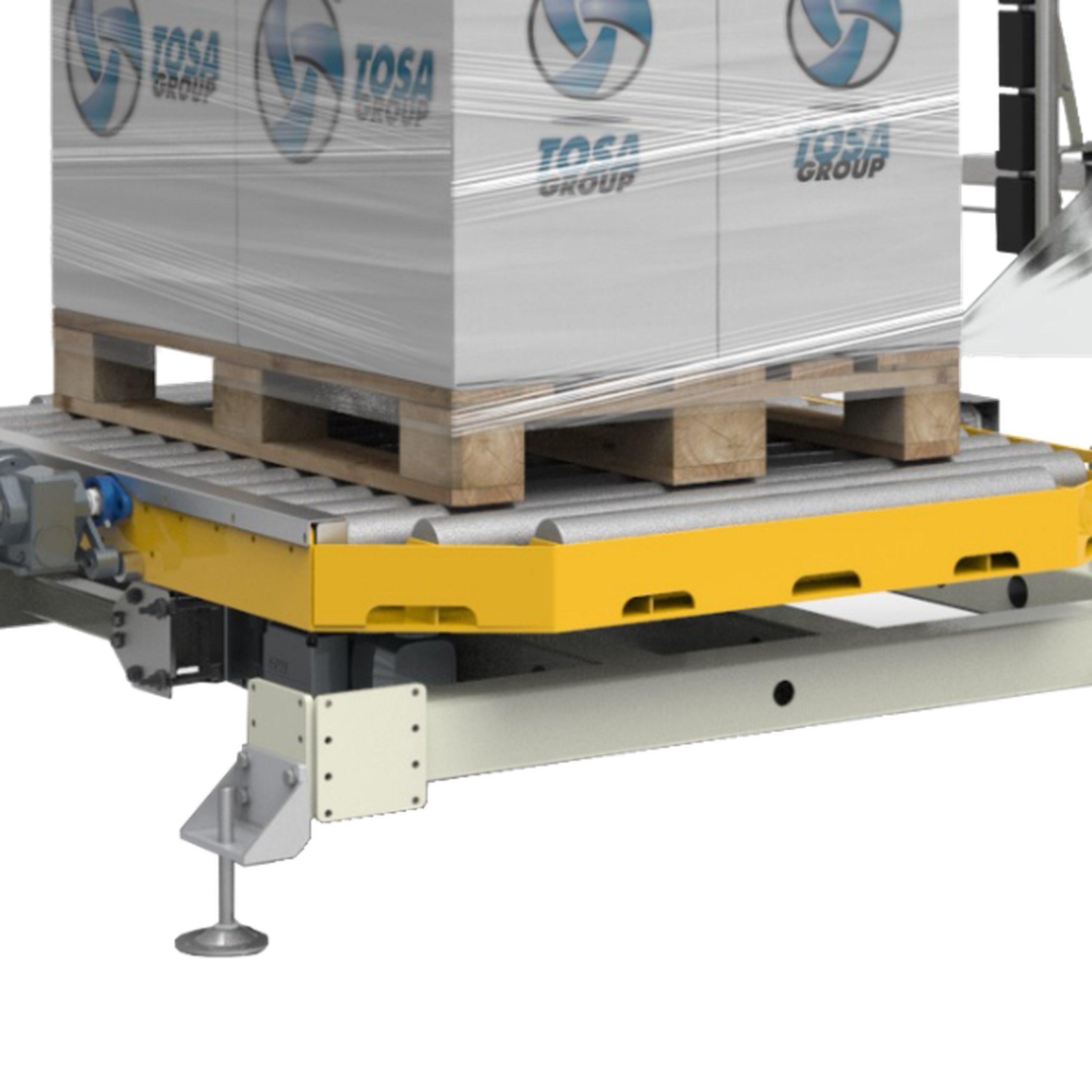

Rotations
Achieves up to 16 rotations per minute for a production capacity of up to 40 pallets per hour.

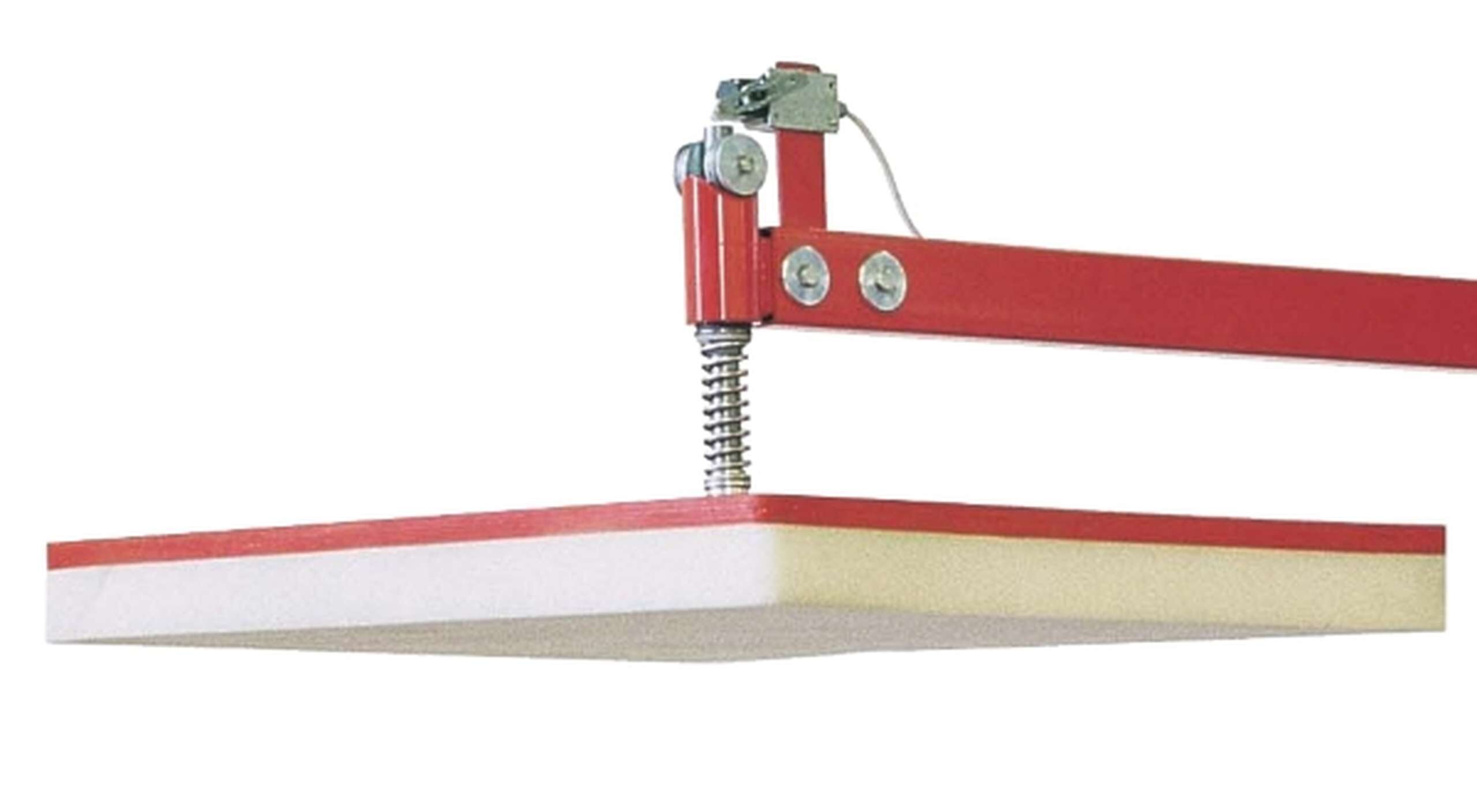

Pneumatic Top Presser
A rotating pallet stabiliser plate that holds the pallet in place whilst it's in motion.

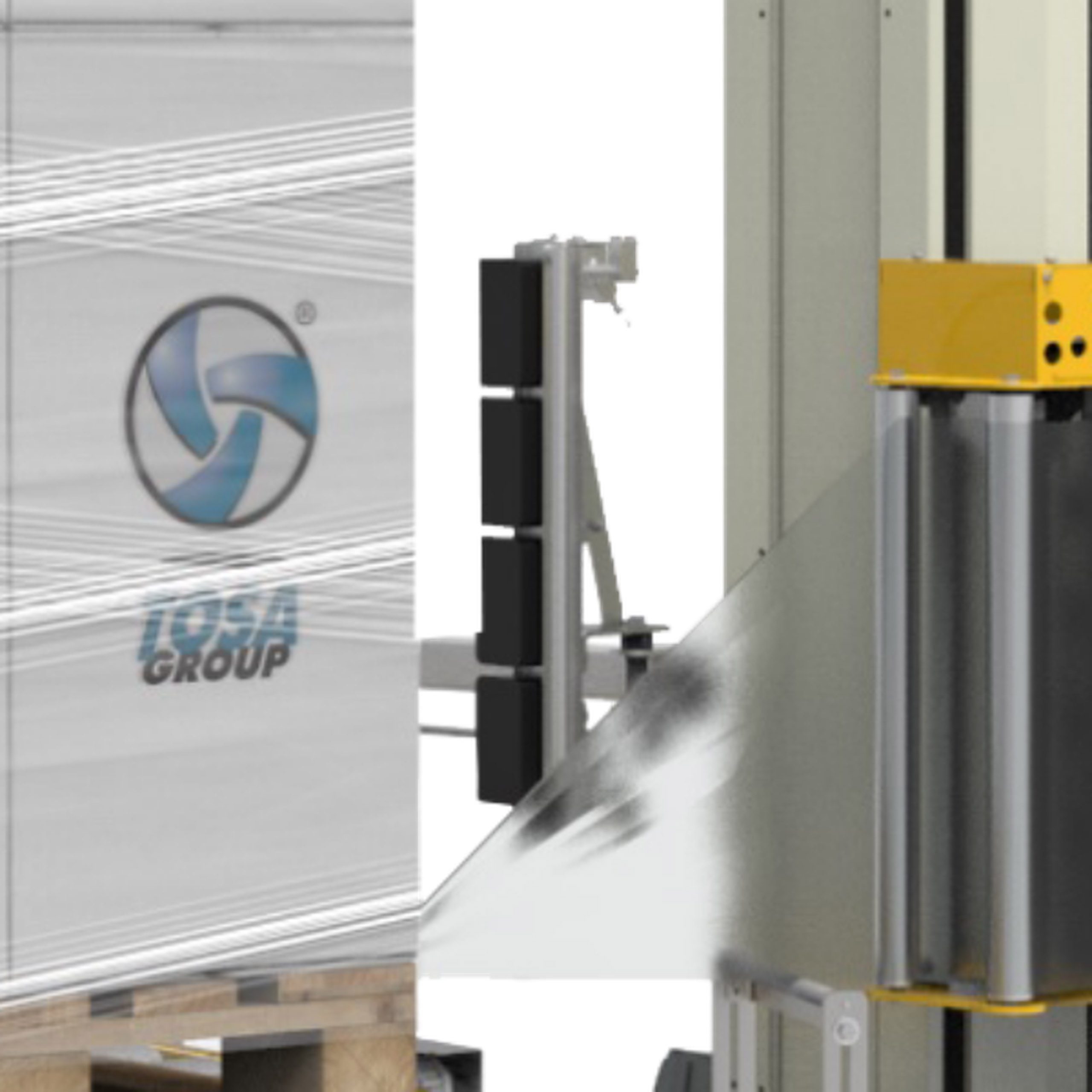

Cut and sticking arm
This allows for minimal operator intervention, attaching and detaching the film from the pallets before and after the wrapping cycle.

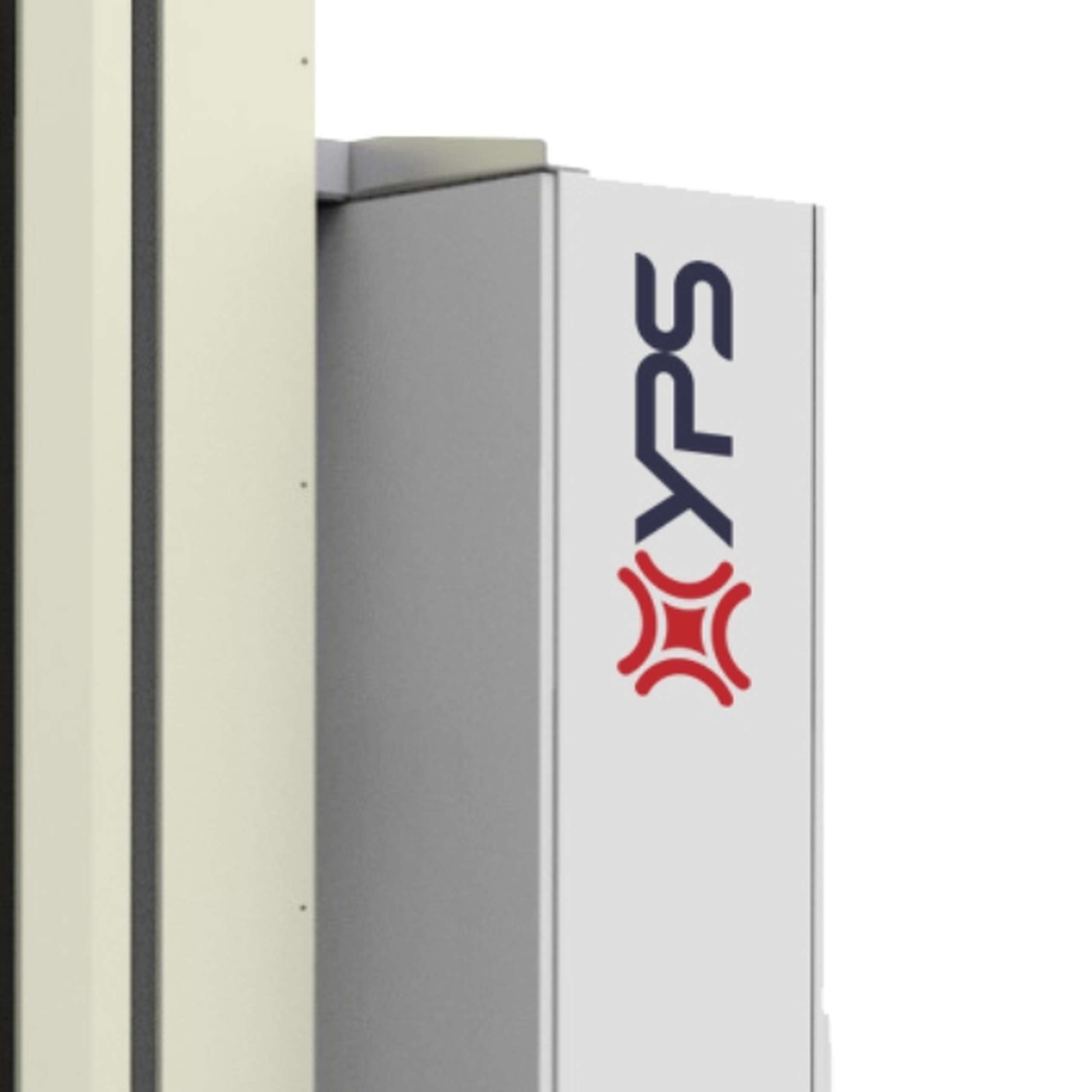

Smart Wrapping Technology
Smart wrapping technology allows you to automatically optimise the distribution of the film even mid- wrapping cycle to minimise the consumption of film and actively control the tension of the film in the corners of the load. The automatic detection system of the size and position of the palletised load improve the wrapping recipe, adjusting it for that specific load. It’s possible to adjust the film feeding around the corners directly from the control panel.
Rotations
Achieves up to 16 rotations per minute for a production capacity of up to 40 pallets per hour.
Pneumatic Top Presser
A rotating pallet stabiliser plate that holds the pallet in place whilst it's in motion.
Cut and sticking arm
This allows for minimal operator intervention, attaching and detaching the film from the pallets before and after the wrapping cycle.
Smart Wrapping Technology
Smart wrapping technology allows you to automatically optimise the distribution of the film even mid- wrapping cycle to minimise the consumption of film and actively control the tension of the film in the corners of the load. The automatic detection system of the size and position of the palletised load improve the wrapping recipe, adjusting it for that specific load. It’s possible to adjust the film feeding around the corners directly from the control panel.
Features & Benefits
Enhanced safety
Film safety stop, anti-fall system and ground-level motor all improve safety.
Load stabilisation
Improves stability for a more secure wrapped pack and enhanced user safety.
Fast wrapping
Achieves speeds of up to 40 pallets per hour.
Versatile system
Accepts any pallet width including Euro and CHEPS.
Wrapping cycles
Dust-proof & waterproof wrapping cycles come as standard.
Smart wrapping tech
Tension, film distribution and wrapping cycles are automatically adjusted.
Enhanced safety
Film safety stop, anti-fall system and ground-level motor improve safety.
Load stabilisation
Improves stability for a more secure wrapped pack and enhanced user safety.
Fast wrapping
Achieves speeds of up to 40 pallets per hour.
Versatile system
Accepts any pallet width including Euro and CHEPS.
Wrapping cycles
Dust-proof & waterproof wrapping cycles come as standard.
Smart wrapping tech
Tension, film distribution and wrapping cycles are automatically adjusted.
Testimonials
Find out more about our Fully Automatic Turntables
Low Maintenance, High performance Design
YPS’s turntable unit is designed for low maintenance and high-performance wrapping, optimising your production time and safety.
A range of inbuilt features contributes to their low maintenance operation:
- Sliding devices with direct motorisation
- Lubrication-free toothed belts
- Lifting group, pre-lubricated for life
- Cable channel and identification of components and cables
- Centralised lubrication points
Our equipment has been shown to slash the time spent carrying out typical servicing procedures by 75% compared to lesser equipment on the market.
A selection of wrapping cycles
Our fully automatic pallet wrapping machines offer many wrapping cycles across the range. These include:
Standard: Wraps the four outward-facing sides of the pallet with stretch film.
Dust-proof: Adds a polyethylene top sheet to protect the pallet from dust and dirt, ideal for long-term storage.
Water-proof: Uses a top-sheet dispenser to cover the pallet with a film layer, followed by another stretch film layer. This completely protects the pallets from not only dust and dirt but also the ingress of humidity and rain, leaving them safe to be stored in an outside environment.
Award-Winning Support
We support customers at every step of their automated packaging journey, a commitment recognised by YPS being two-time winners of Automate UK’s prestigious Customer Service award.
Our service includes:
- A free service contract with every machine sold.
- Installation and commissioning overseen by our in-house, specialist engineering team.
- Free and unlimited operator training.
- Access to engineering experts out of hours and throughout the year.
- Spare parts for all machines supplied, held in stock at our UK warehouse.
- Extensive stocks of packaging materials, also held at our UK warehouse and available for next-day despatch.
Related machines
An ideal solution for heavy or unstable pallets, where pallets need to be kept motionless.
- Dust and water proof wrapping cycle as standard.
- Speed capabilities up to 160 wrapped pallets per hour
- Handles stretch up to 400%
- Superior build quality
- Can be integrated with upstream and downstream systems
An entry level power pre-stretch turntable model, with six pre-programmable cycles. Impressive performance combined with an economical investment.
- Stainless steel, low profile & high stretch versions available
- Six pre-programmable wrapping cycles
- Speeds of up to 12 rotations per minute
- A choice of film carriage
- Intuitive touch screen controls
